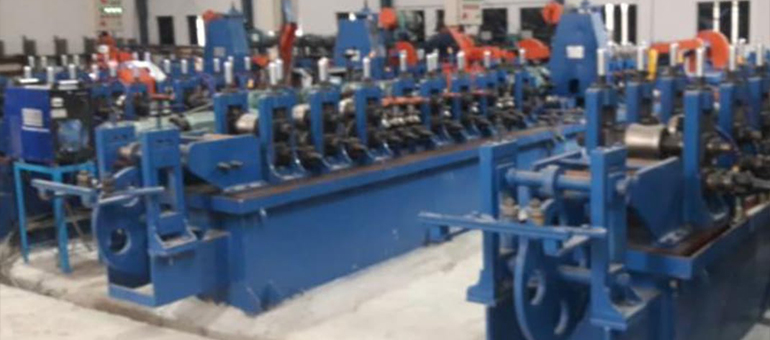

Our Stainless-steel tube mills are far above the ordinary tube mills and packed with some of the best features and facilities comparable with best suppliers of the world. Design of our stainless-steel tube mills are to ensure highest productivity level and achieve product quality better than desired standards. We ensure to roll material with Tensile & Yard strength of higher grades than specified keeping future requirement in mind.
| MODEL NO. | PIPE DIAMETER (IN MM) | SQUARE PIPE (IN MM) | SHEET THICKNESS (IN MM) | MILL SPEED (M/MIN.) | ||||
|---|---|---|---|---|---|---|---|---|
| MIN. | MAX. | MIN. | MAX. | MIN. | MAX. | MIN. | MAX. | |
| BEW – SS- 1” | 9.50 | 25.40 | 10 × 10 | 20 × 20 | 0.25 | 0.60 | 8 | 12 |
| BEW – SS- 1.25” | 9.50 | 31.70 | 10 × 10 | 25 × 25 | 0.25 | 1.00 | 8 | 12 |
| BEW – SS- 1.5” | 9.50 | 38.10 | 10 × 10 | 30 × 30 | 0.25 | 1.50 | 3 | 12 |
| BEW – SS- 1.5”H | 12.70 | 38.10 | 12 × 12 | 30 × 30 | 0.25 | 2.00 | 3 | 6 |
| BEW – SS- 2” | 12.70 | 50.80 | 12 × 12 | 40 × 40 | 0.40 | 2.50 | 2.5 | 6 |
| BEW – SS- 3” | 25.40 | 76.20 | 20 × 20 | 60 × 60 | 0.60 | 3.00 | 2 | 5 |
| BEW – SS- 4” | 50.80 | 114.30 | 40 × 40 | 80 × 80 | 0.70 | 5.00 | 2 | 4 |
| BEW – SS- 4” NB | 50.80 | 114.30 | 40 × 40 | 80 × 80 | 0.70 | 5.00 | 2 | 4 |
| BEW – SS- 6” NB | 60.33 | 168.30 | 47 × 47 | 132 × 132 | 1.00 | 6.00 | 1 | 3 |
| BEW – SS- 8” NB | 88.90 | 219.10 | 70 × 70 | 170 × 170 | 1.60 | 8.00 | 1 | 3 |
| BEW – SS- 10” NB | 114.30 | 273.10 | 100 × 100 | 214 × 214 | 2.00 | 8.00 | 1 | 3 |
| BEW – SS- 12” NB | 114.30 | 323.90 | 100 × 100 | 254 × 254 | 2.00 | 10.00 | 1 | 3 |
